Monitoring

Experiment progress and metrics can be monitored from the AIchor UI or the CLI.

Resource metrics​

Real-time CPU, memory, and GPU usage is shown in the experiment detail view.

Resource metrics Resource metrics

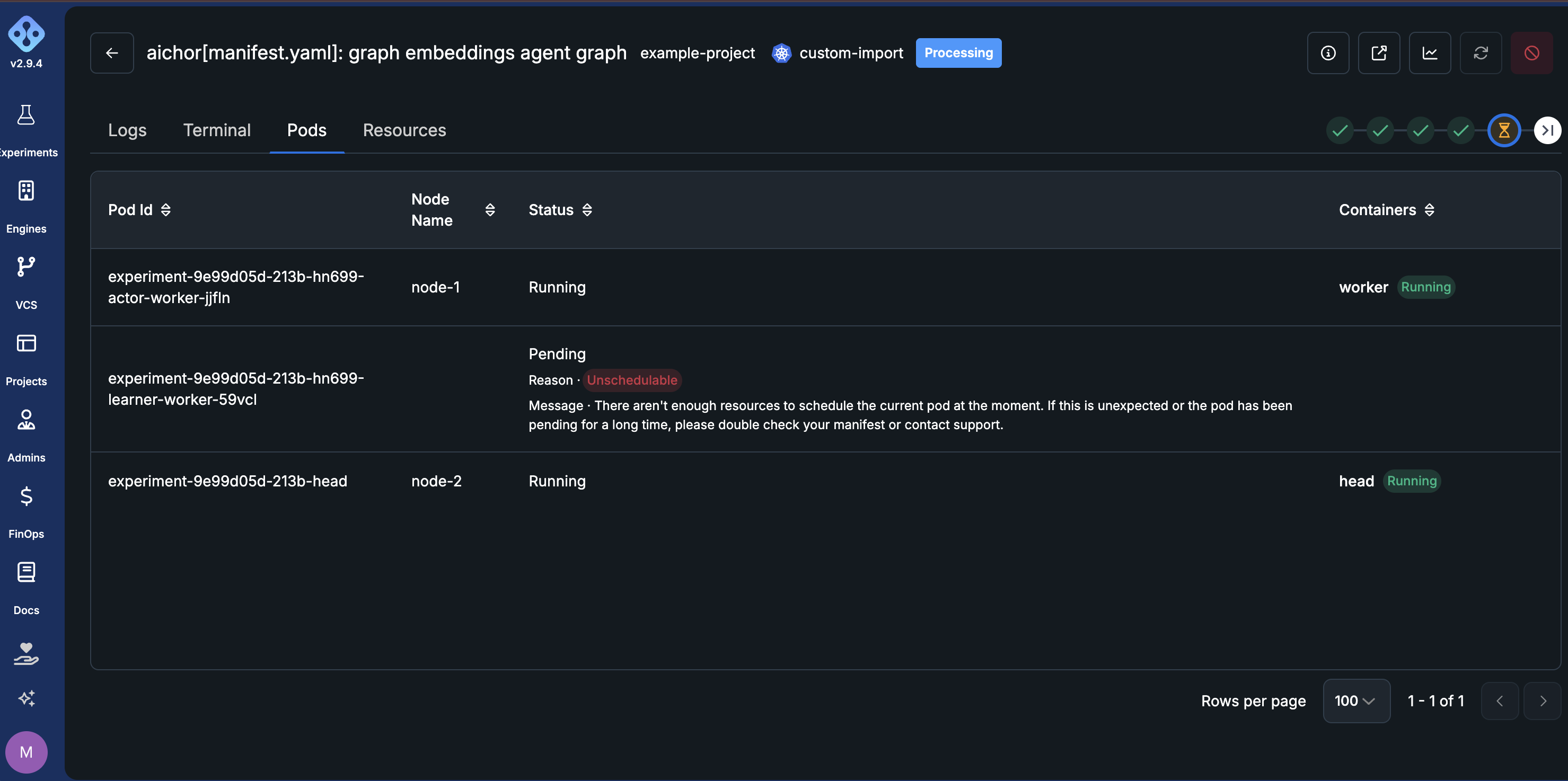

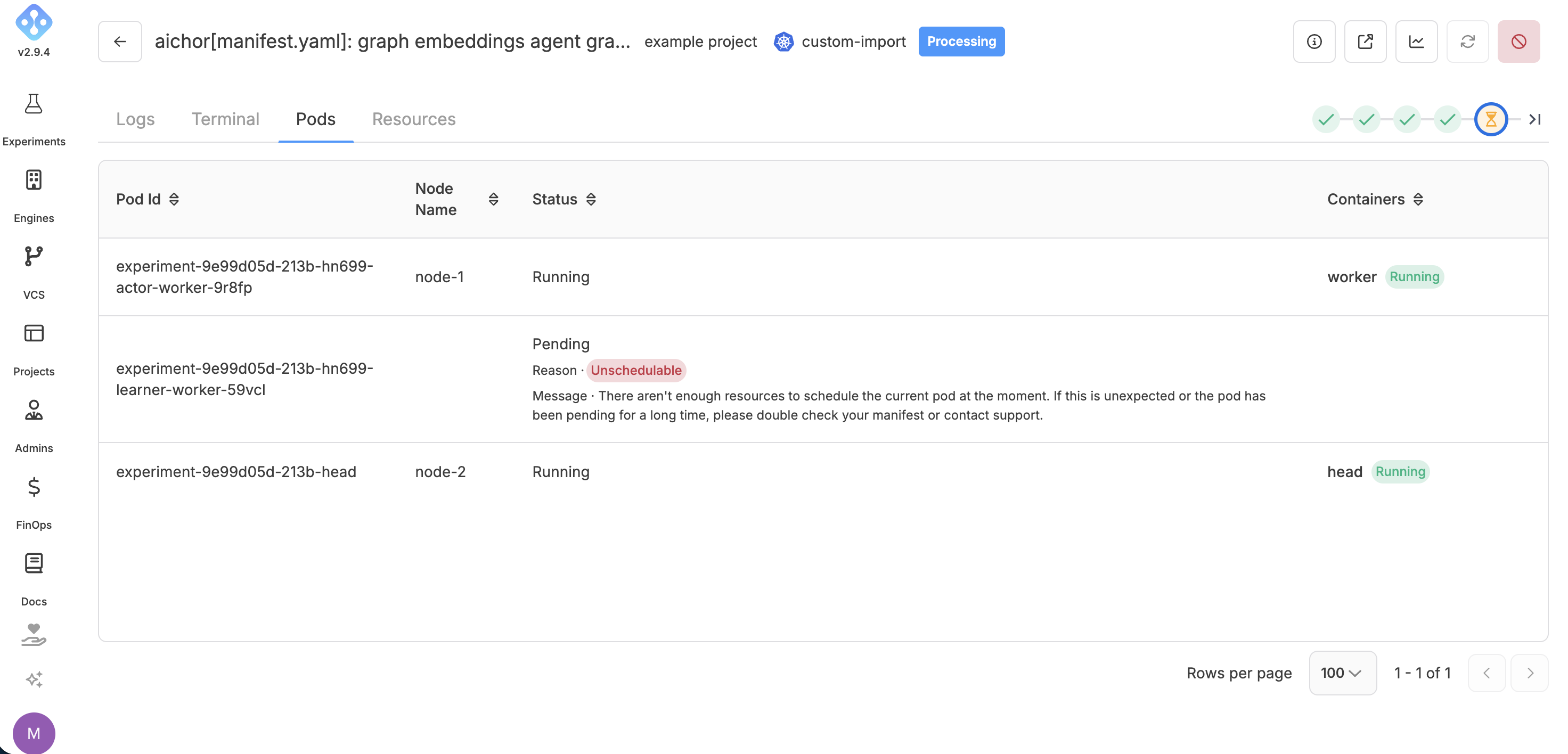

Pods status (for kuberneties engines)​

The Pods tab shows the status of each pod in the experiment. This is useful for diagnosing scheduling or runtime issues.

Pods status Pods status

Pod information is also available via the CLI:

aichor experiments list-pods <experiment-id>

TensorBoard​

To use TensorBoard, save all logs to the directory given by the AICHOR_TENSORBOARD_PATH environment variable, then open AIchor's TensorBoard integration:

  1. Go to the experiment page.
  2. Click the View TensorBoard button in the top-right corner.
note

The tensorboard option must be enabled in the manifest. To see the manifest spec, check the Manifest Reference.

Where logs are stored​

By default, AICHOR_TENSORBOARD_PATH points to a location in the project's cloud storage bucket (object storage). Logs written there are read automatically by the TensorBoard integration — no extra configuration is required.

Organizations without cloud storage​

Some organizations are set up without cloud storage buckets. For these, TensorBoard logs are kept on a shared volume (a disk attached to the experiment) instead. In this case, AICHOR_TENSORBOARD_PATH points to a directory on that mounted volume rather than to a bucket — the training code writes to it in exactly the same way.

To enable this, attach a volume in the manifest and tell TensorBoard to use it:

spec:
  storage:
    attachExistingPVCs:
      - name: <volume-name>
        mountPoint: /mnt/tensorboard
  tensorboard:
    enabled: true
    usePVC:
      enabled: true
      name: <volume-name>

The volume must be requested from the organization administrator beforehand. Once attached, the View TensorBoard button works the same as with cloud storage.

Ray dashboard​

Experiments that use the kuberay operator also have the option to access the Ray dashboard directly through the AIchor UI.

Checking status and step via CLI​

The current status of an experiment:

aichor experiments status <experiment-id>

Output:

{"experiment_status": "Succeeded"}

Possible values: Created, Processing, Cancelled, Succeeded, Failed.

The current step:

aichor experiments step <experiment-id>

Output:

{"experiment_step": "Running"}

Possible values: Waiting, Cloning, Building, Submitting, Running, Completed.

Both commands return JSON and can be captured in scripts:

STATUS=$(aichor experiments status <experiment-id> | jq -r '.experiment_status')
STEP=$(aichor experiments step <experiment-id> | jq -r '.experiment_step')
