Cloud Engine management

Prior to creating projects to run workloads on AIchor, Administrators need to specify the engine where the jobs will be executed.

Depending on the organisation requirements, administrators can select one of 4 options:

• SaaS: AIchor runs the workloads for the customer on Instadeep private or public cloud.
• In the Cloud: Workloads will run on the customer account on AWS or GCP or MS Azure.
• Hosted: Workloads will be running on Instadeep infrastructure (on Premise) upon a confidentiality agreement with the customer.
• On Premise: Workloads will be running on the customer infrastructure.

Note: The case of importing on-premise is detailed in the section "Import On Premise engine"

To start the creation/import process, the administrator selects "Advanced" and "In the Cloud".

Next, depending on the target engine, the administrator selects one of target engine types and fill in the appropriate form to create or import an engine.

GCP

If the cloud provider selected is GCP, the administrator can either create a GKE engine through AIchor or import an existing one.

Note All the regions available on GCP are supported by AIchor.

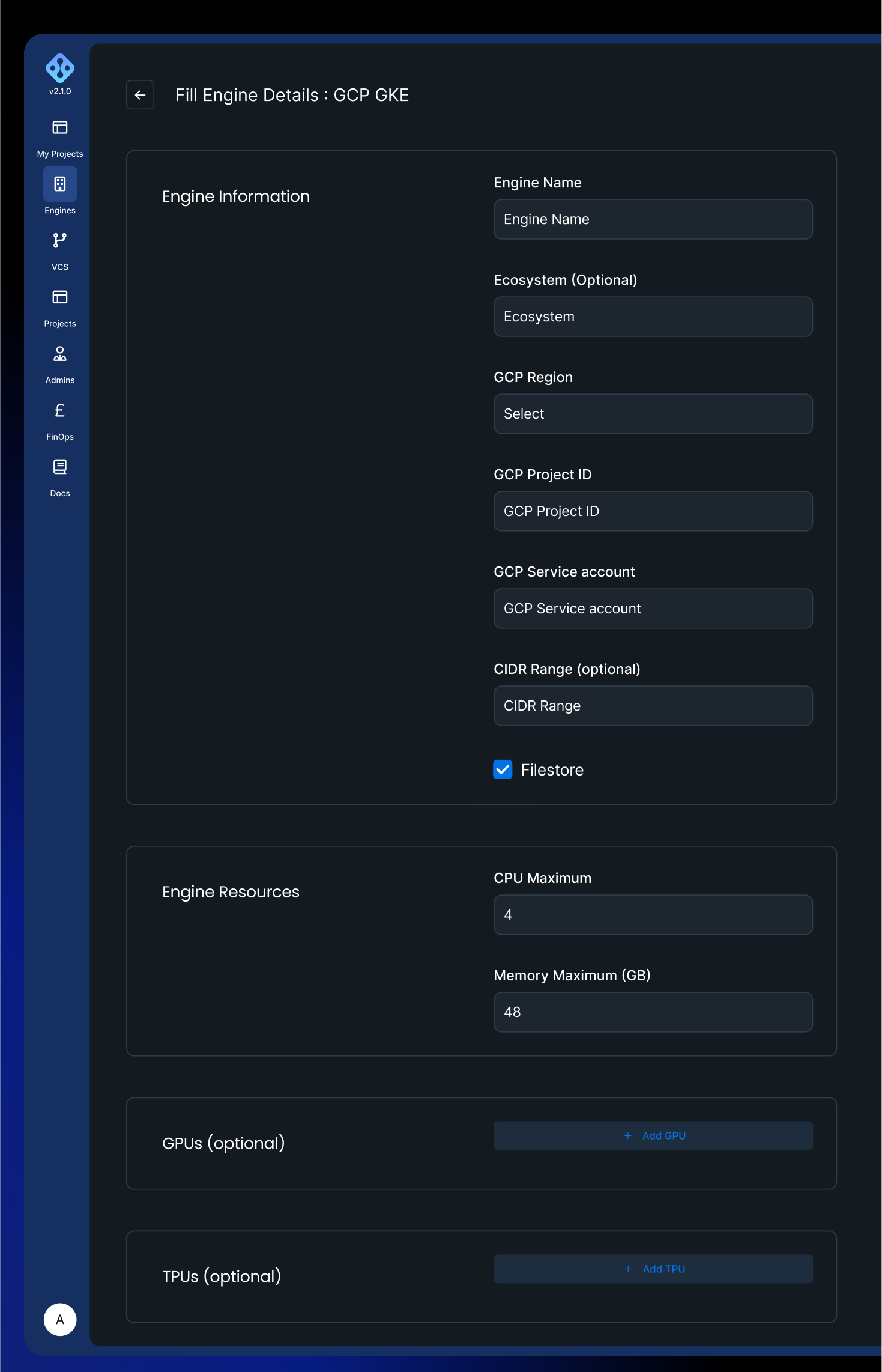

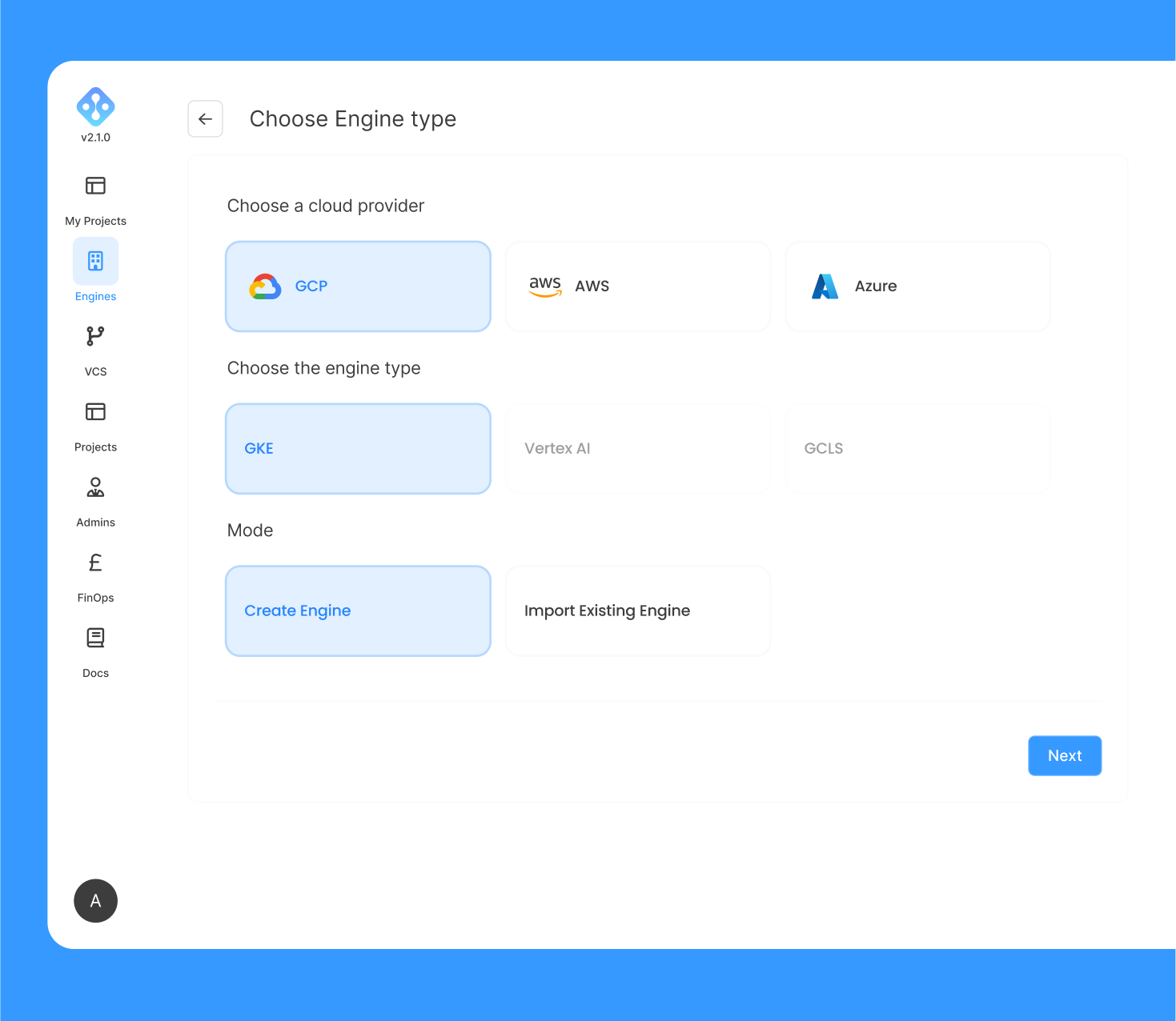

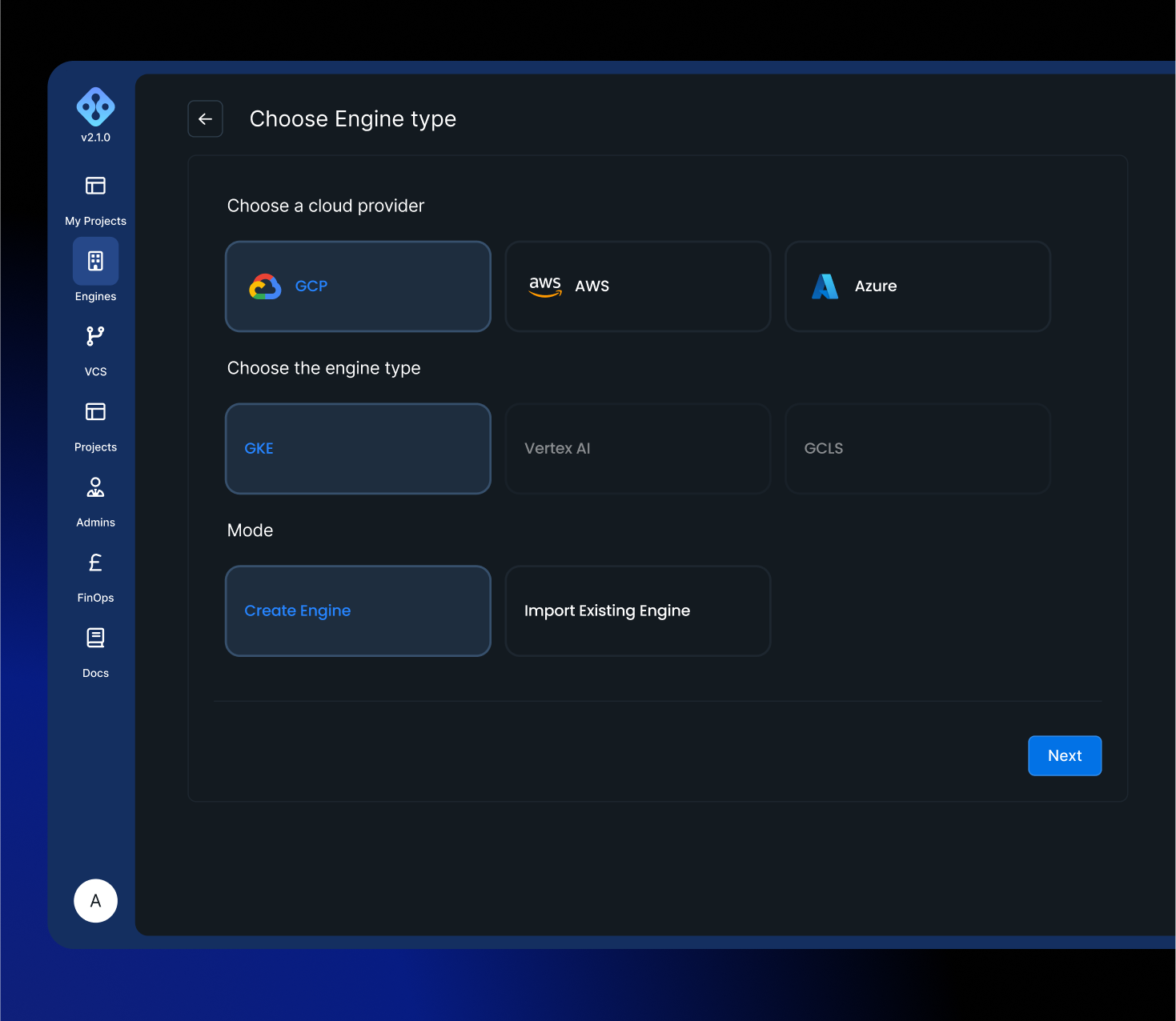

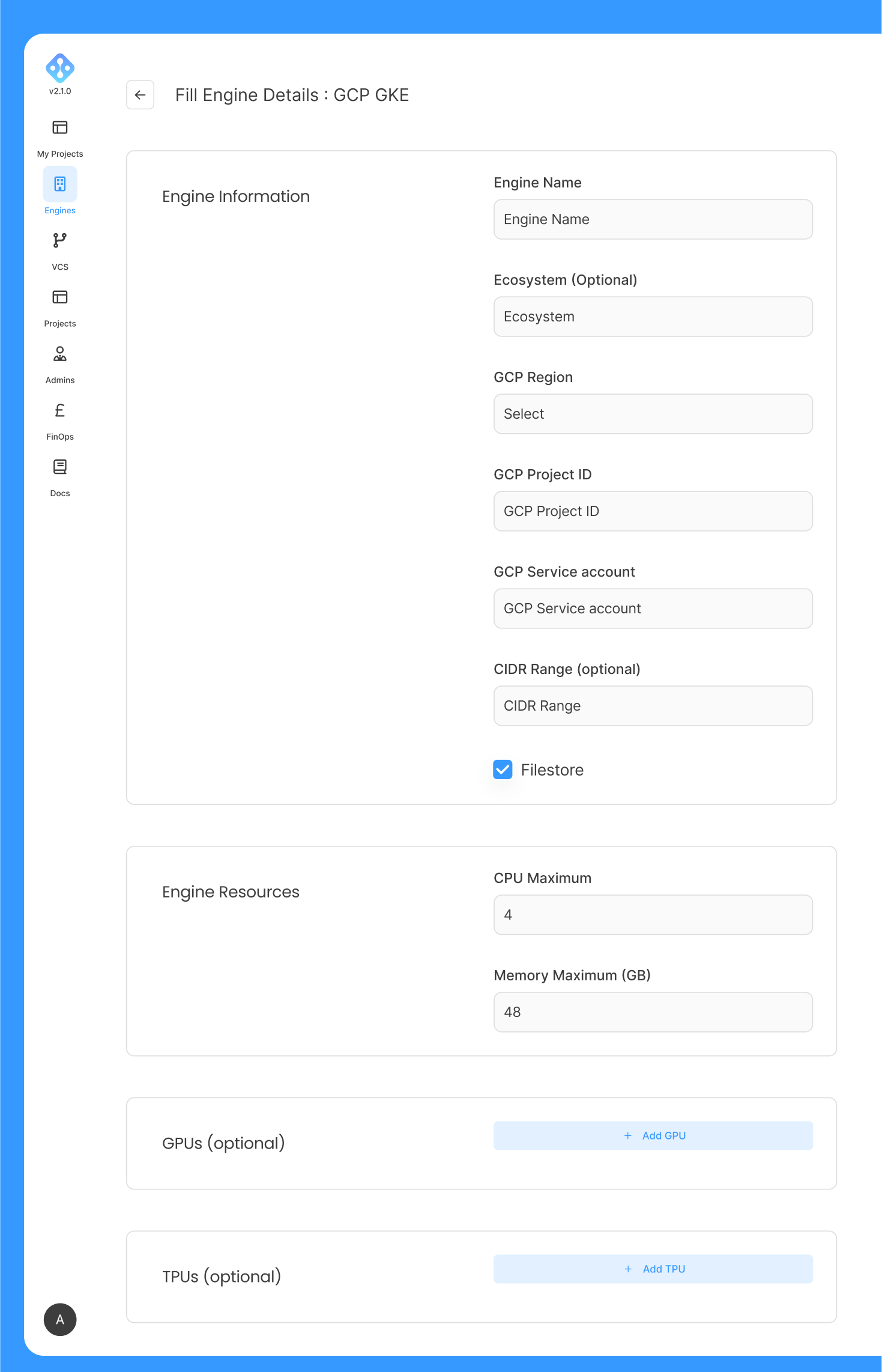

If the administrator would like AIchor to create a GKE cluster, then he needs to select "Create engine":

And provide the below information:

The deployment process lasts up to 15 minutes, once the process is finished, the engine should be displayed as ready on the engine management page.

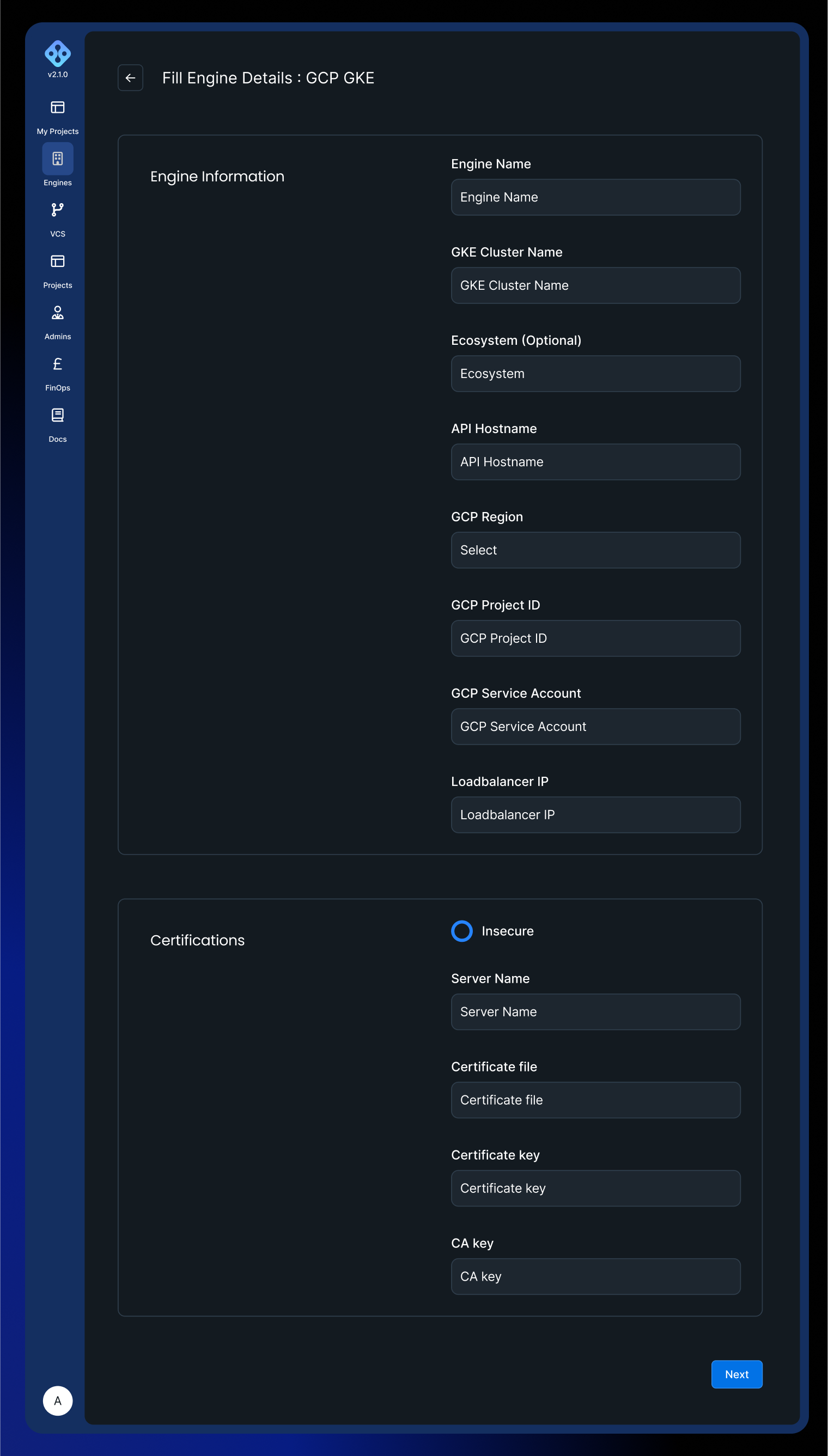

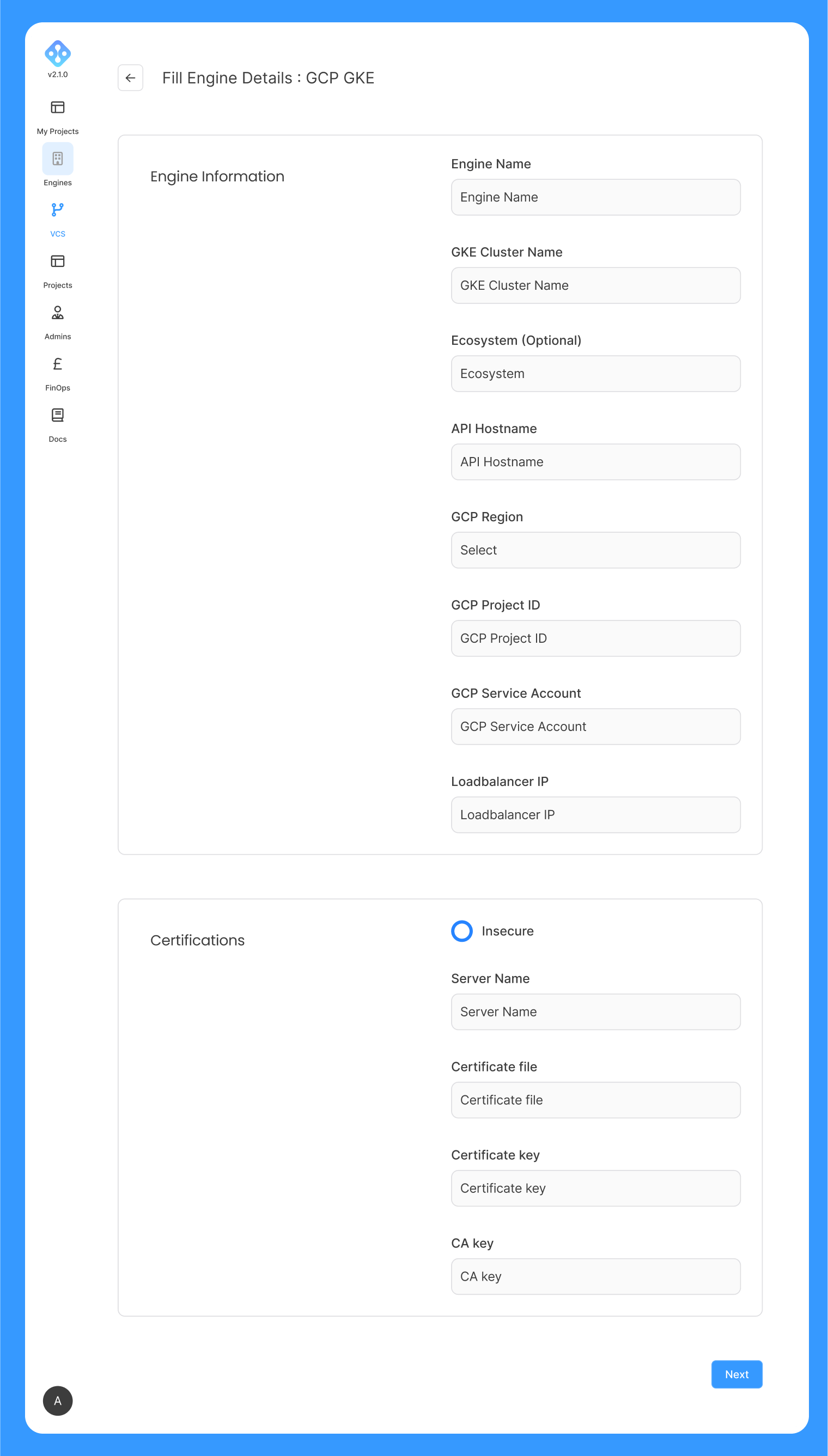

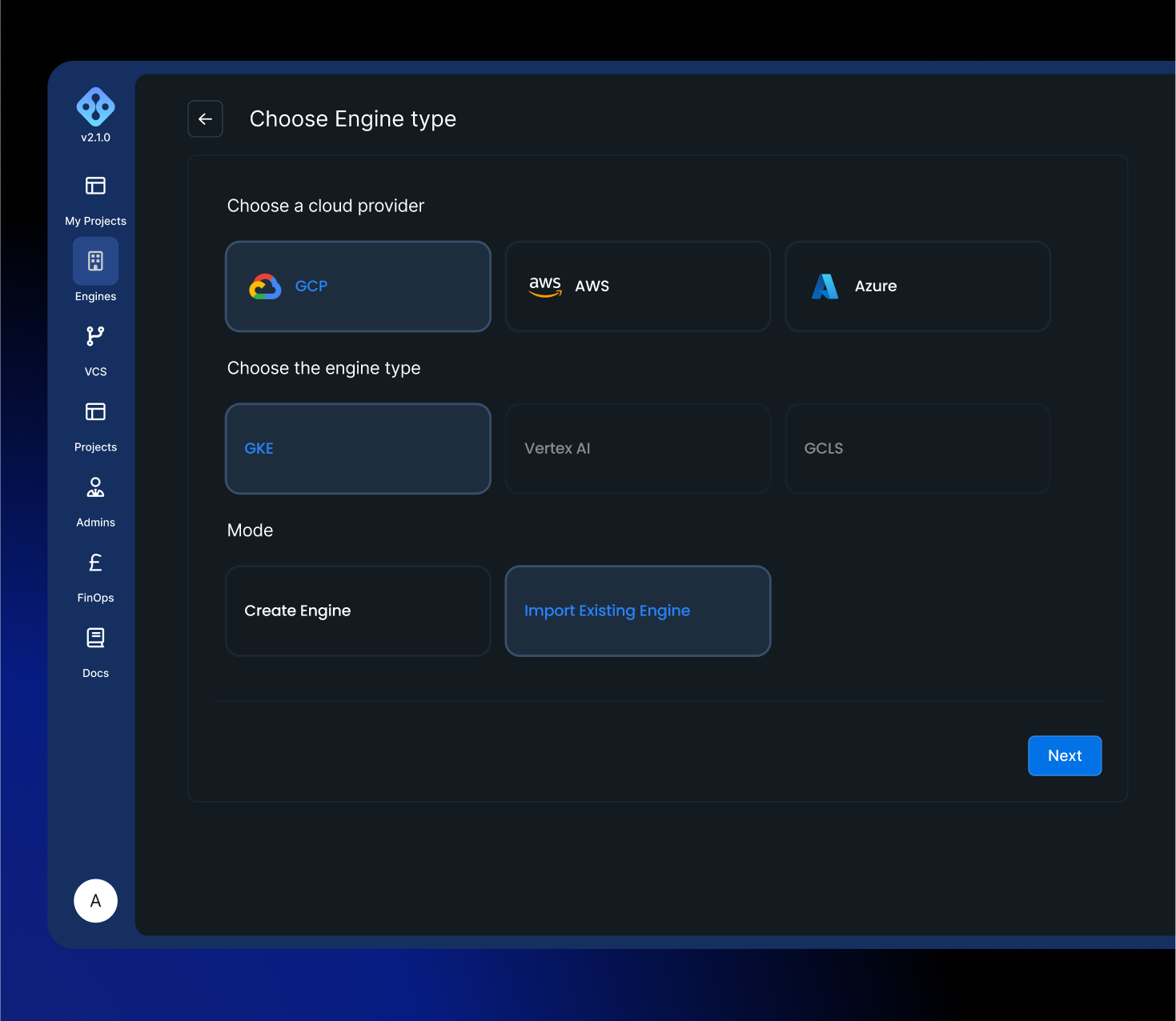

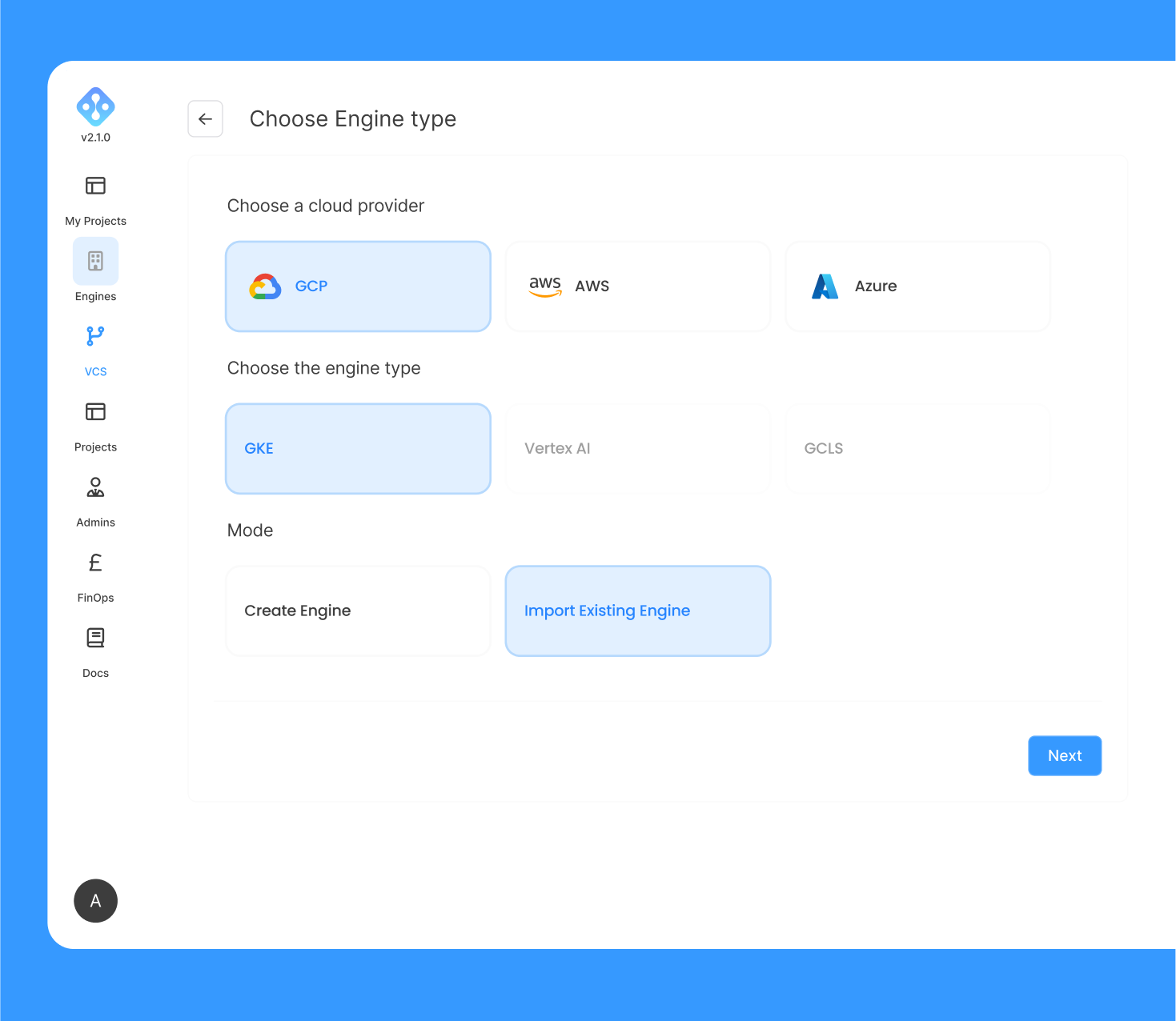

If the administrator would like to import an existing GKE cluster created beforehand, then "Import Existing Engine" is selected:

And provide the below information:

In the case of importing an engine, it is the administrator's responsibility to upgrade/patch the cluster.

AWS

If the cloud provider selected is AWS, the administrator can either create a EKS engine through AIchor or import an existing one.

Note All the regions available on AWS are supported by AIchor.

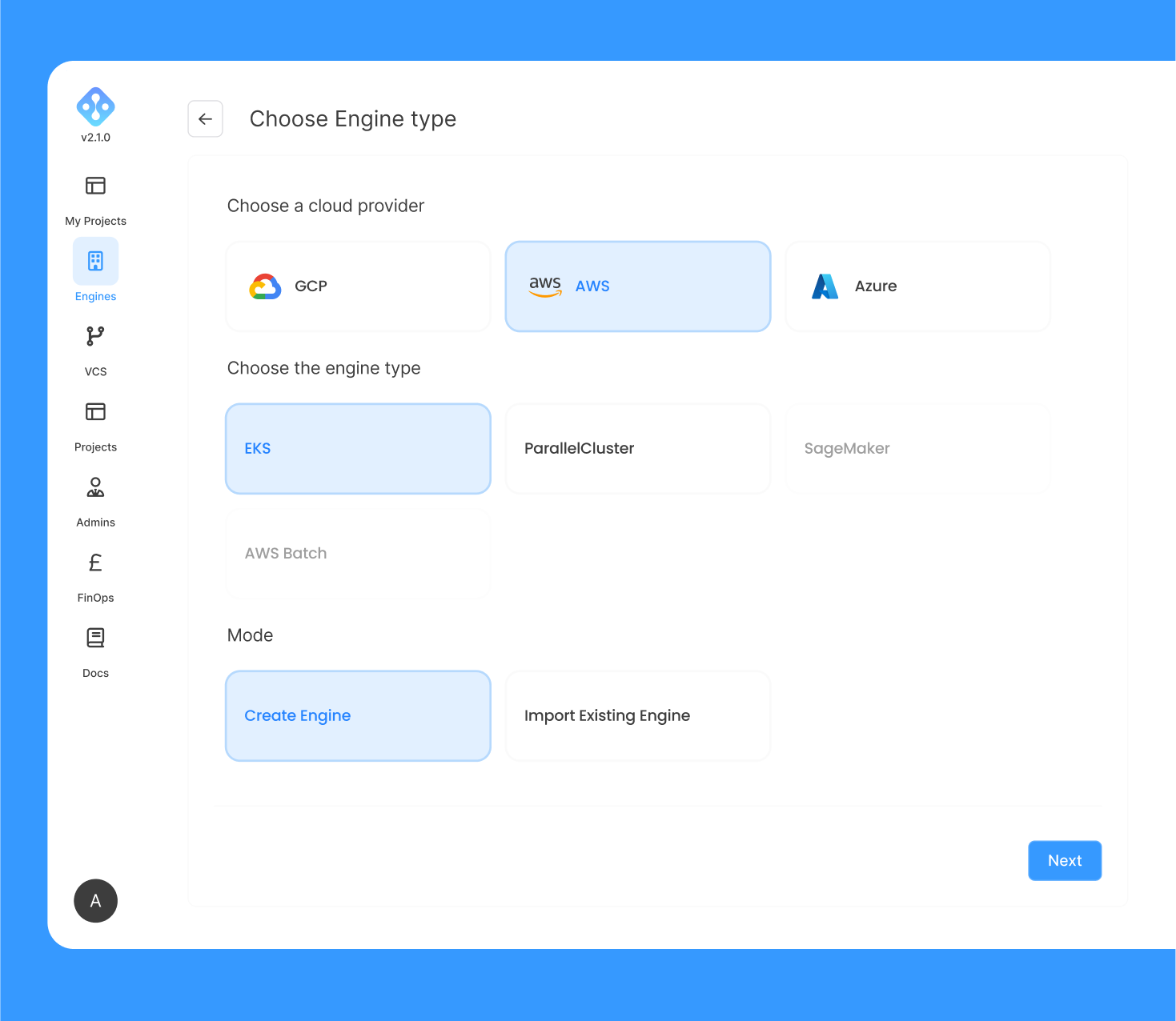

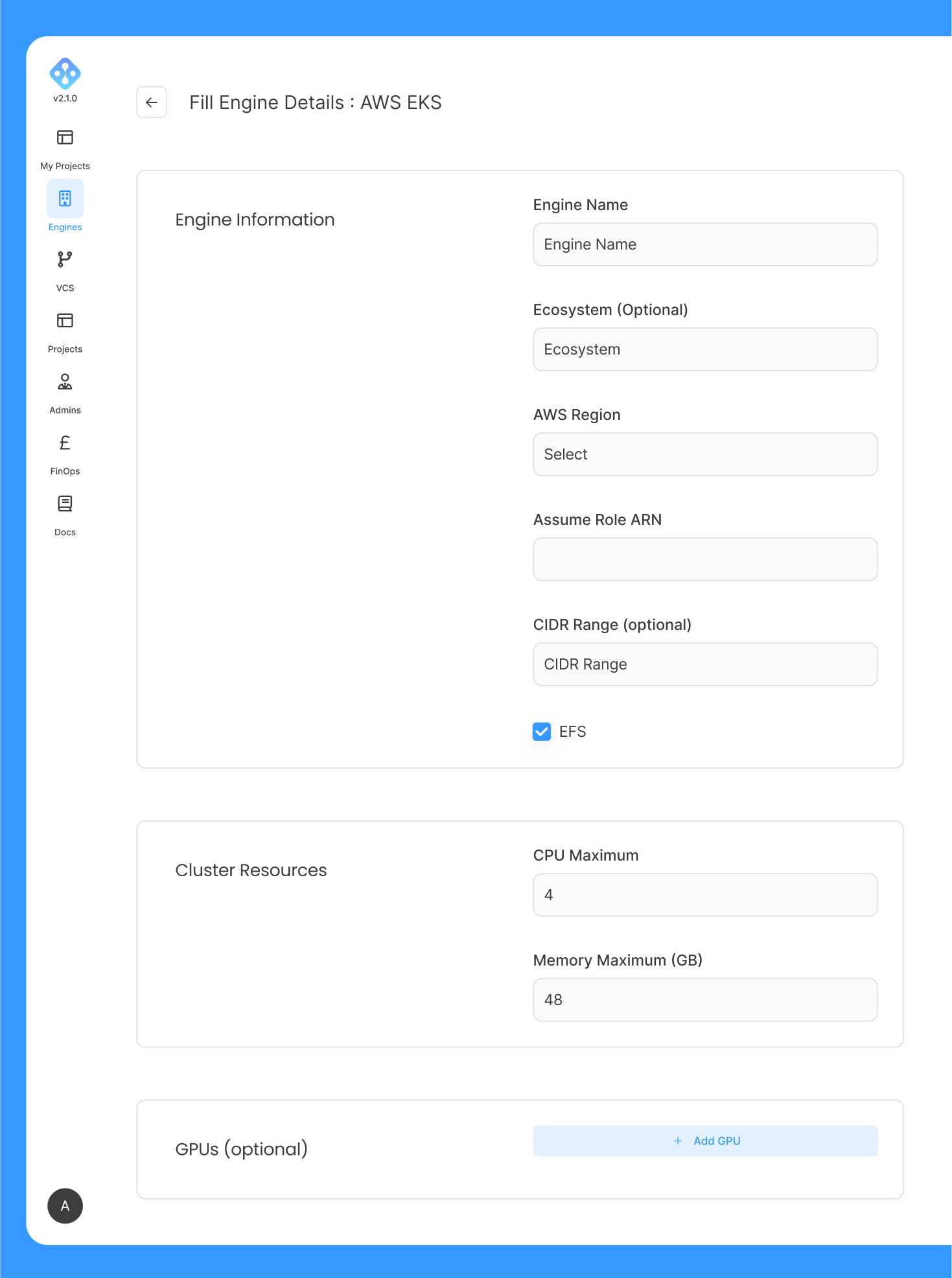

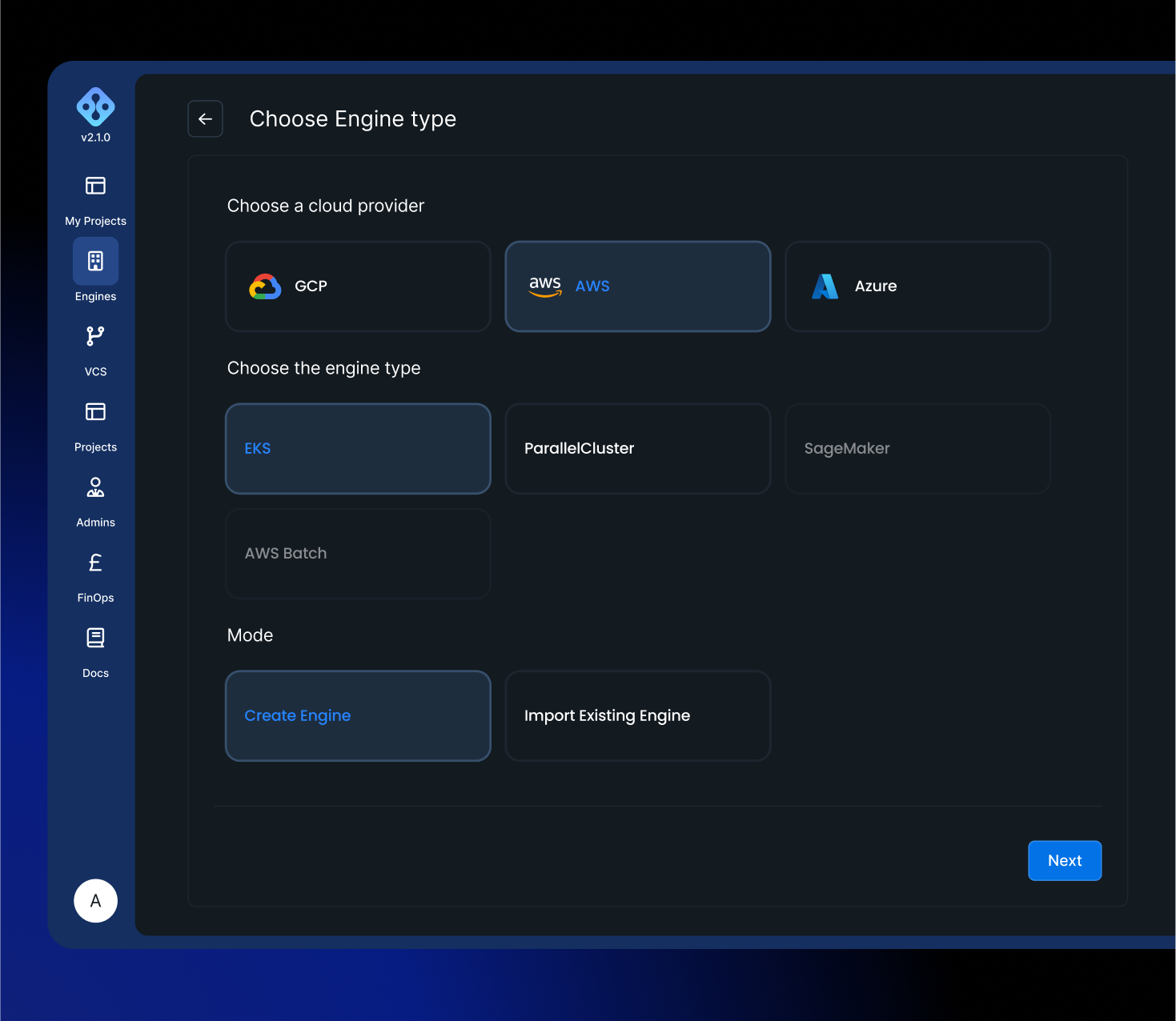

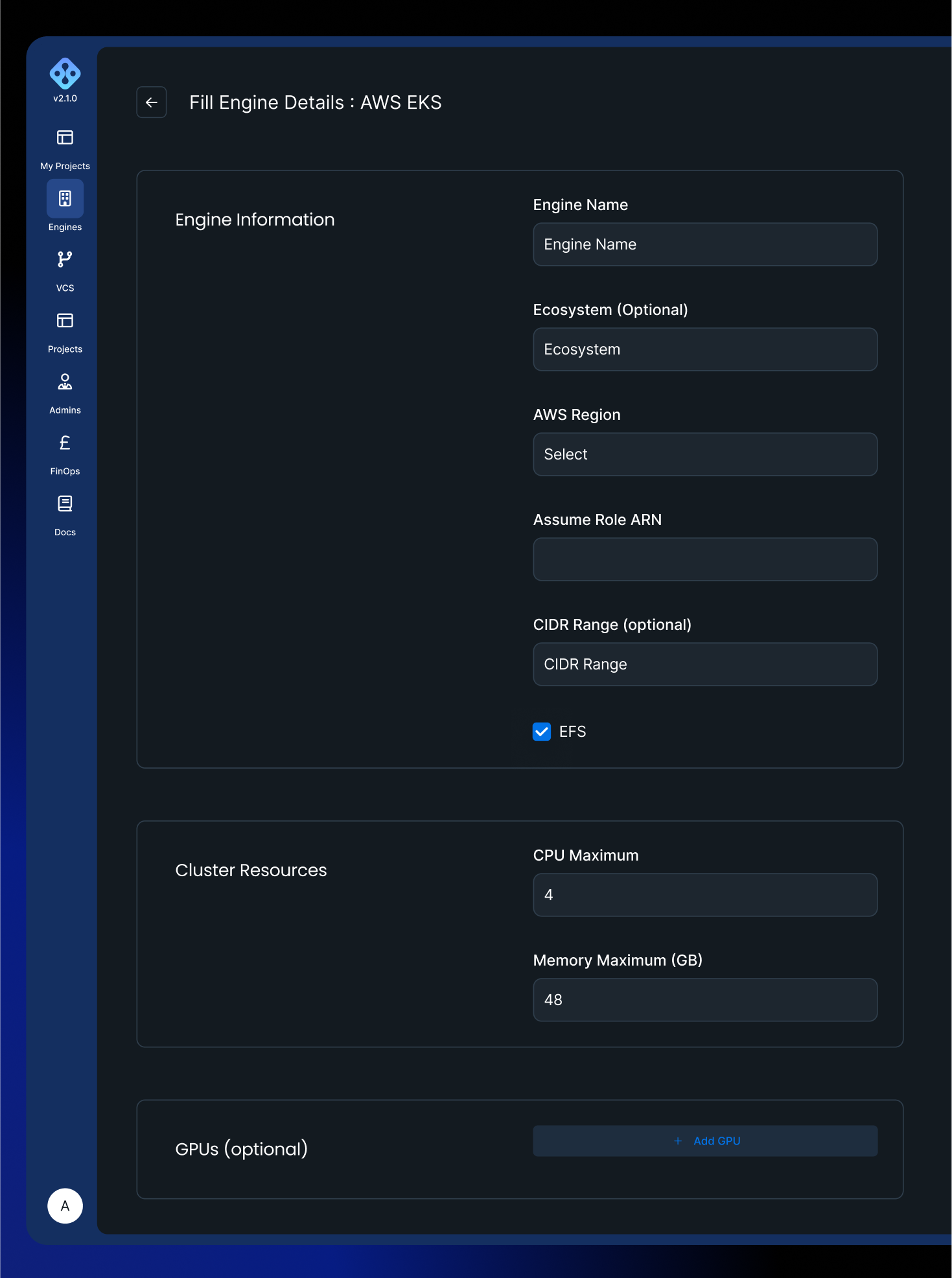

If the administrator would like AIchor to create an EKS cluster, then he needs to select "Create engine":

And provide the below information:

The deployment process lasts up to 15 minutes, once the process is finished, the engine should be displayed as ready on the engine management page.

Note The created EKS engine is created with the default AWS configuration: in a single region and multi-AZ.

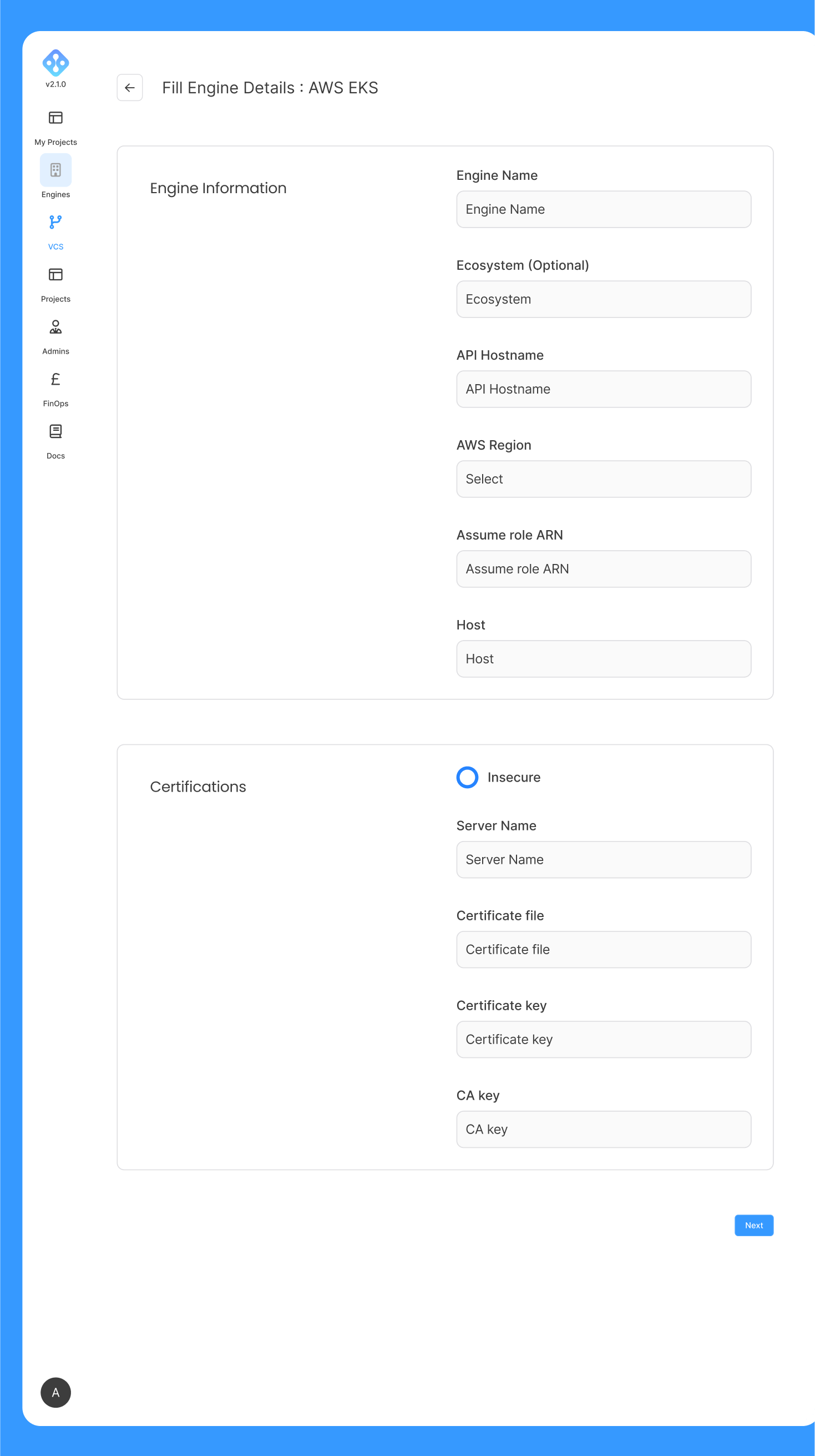

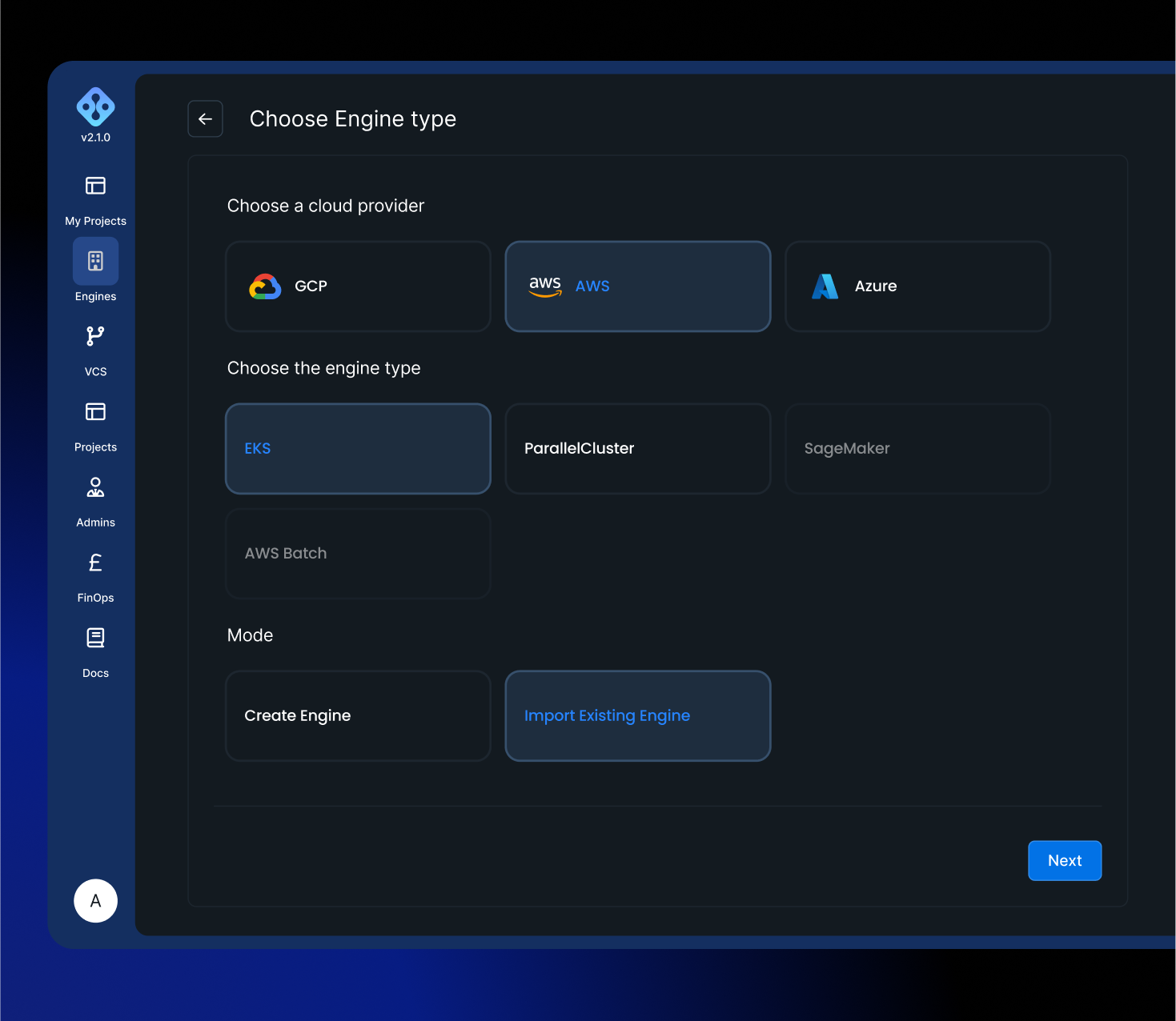

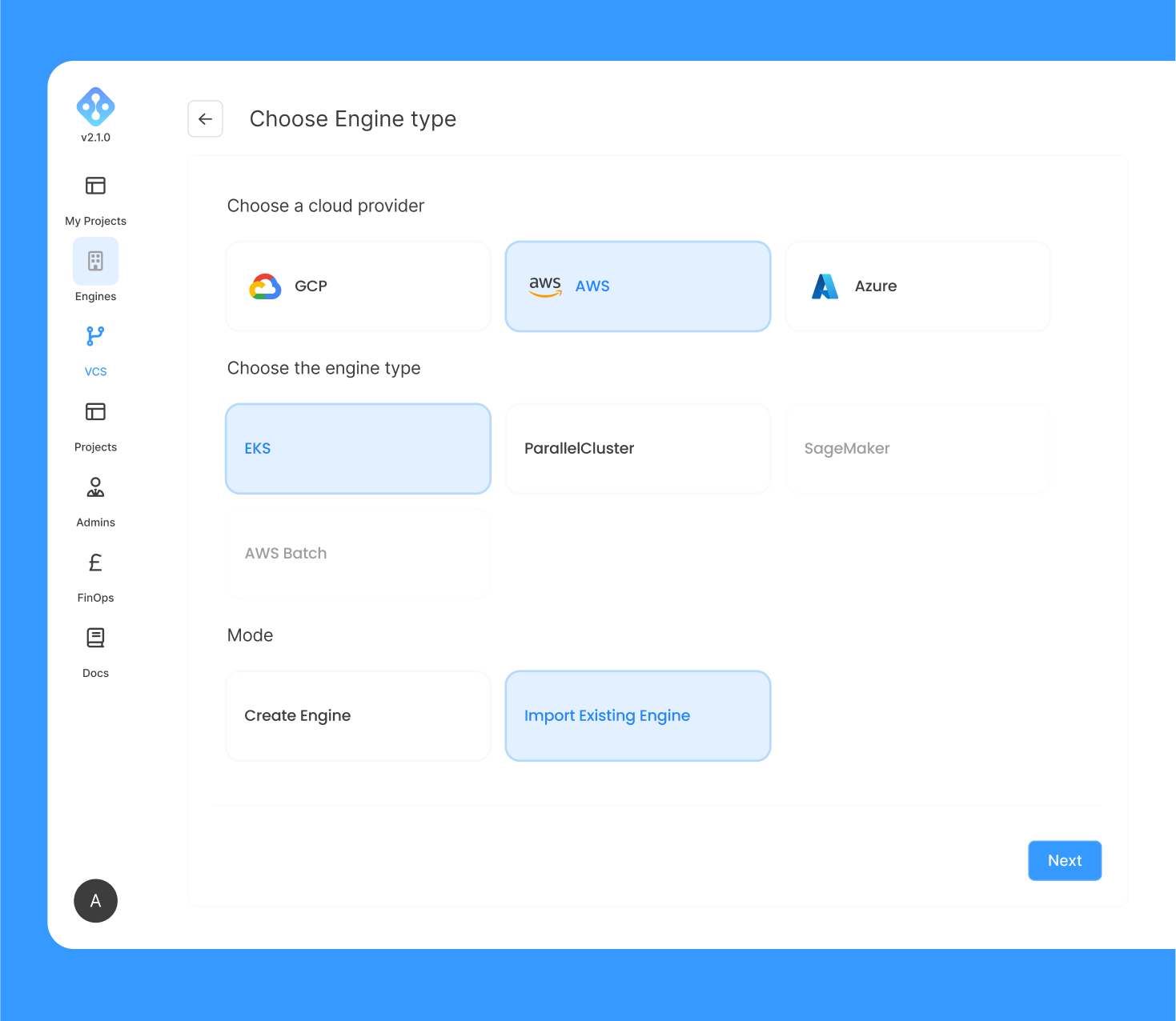

If the administrator would like to import an existing EKS cluster created beforehand, then "Import Existing Engine" is selected:

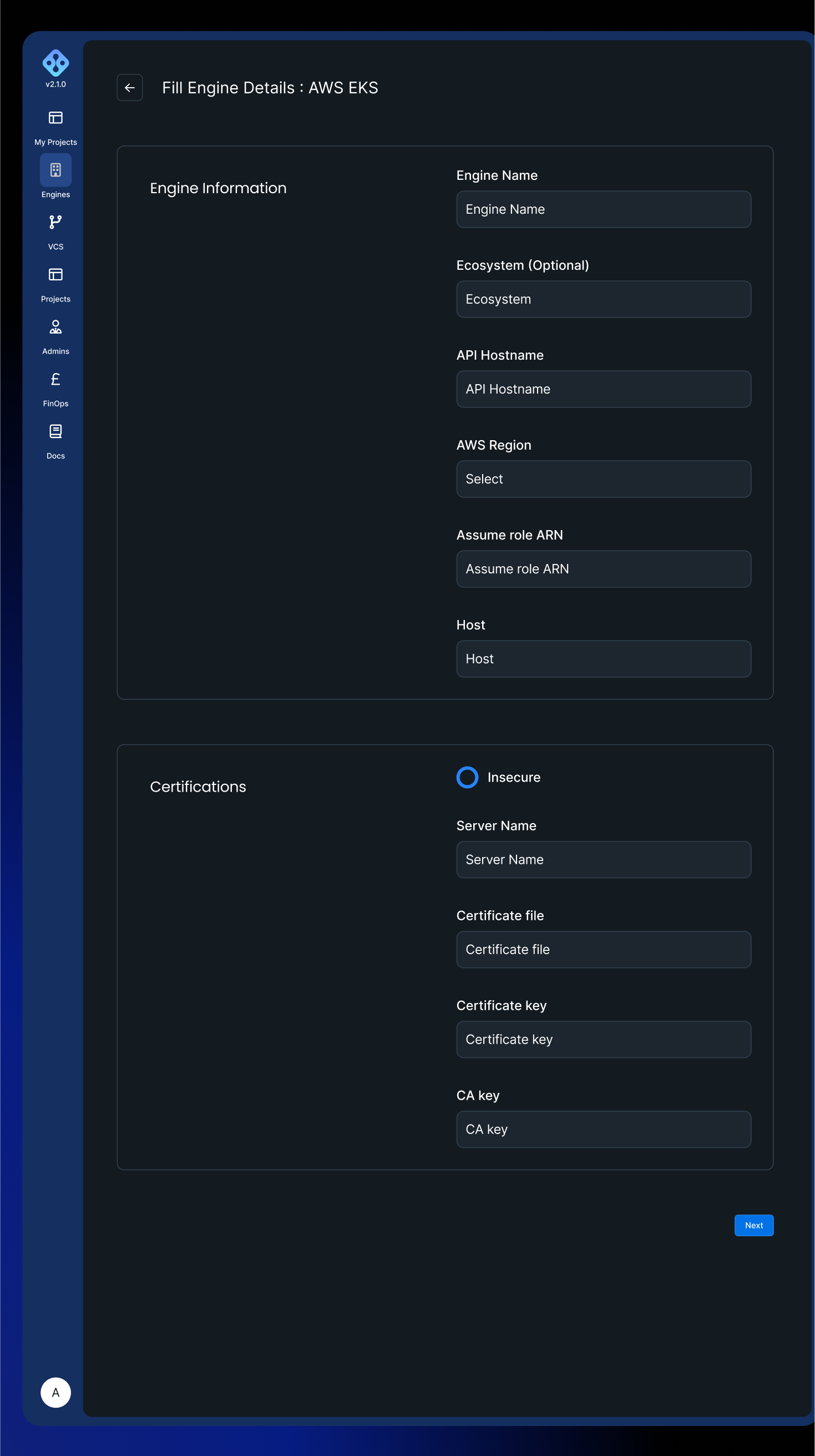

And provide the below information:

In the case of importing an engine, it is the administrator's responsibility to upgrade/patch the cluster.

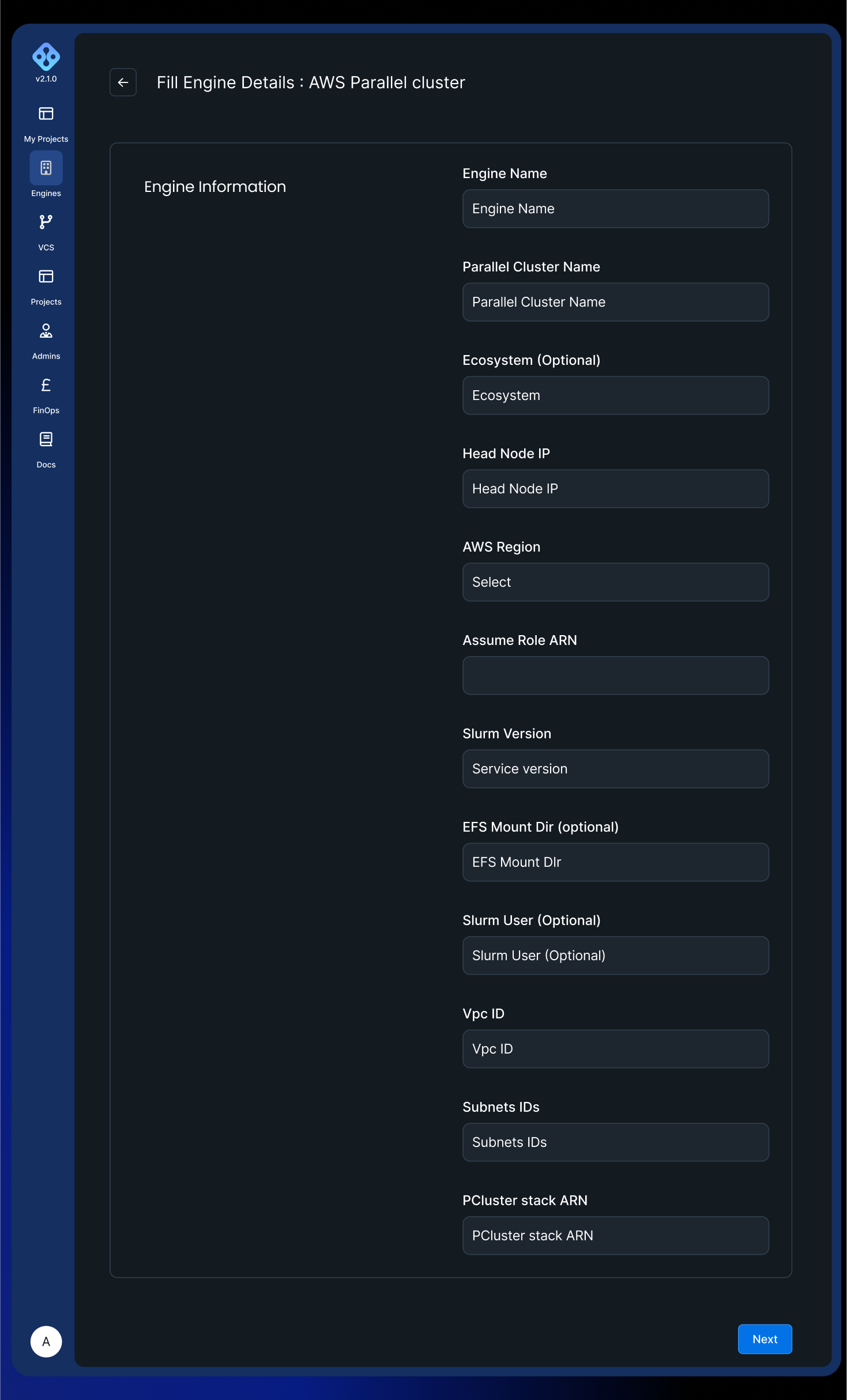

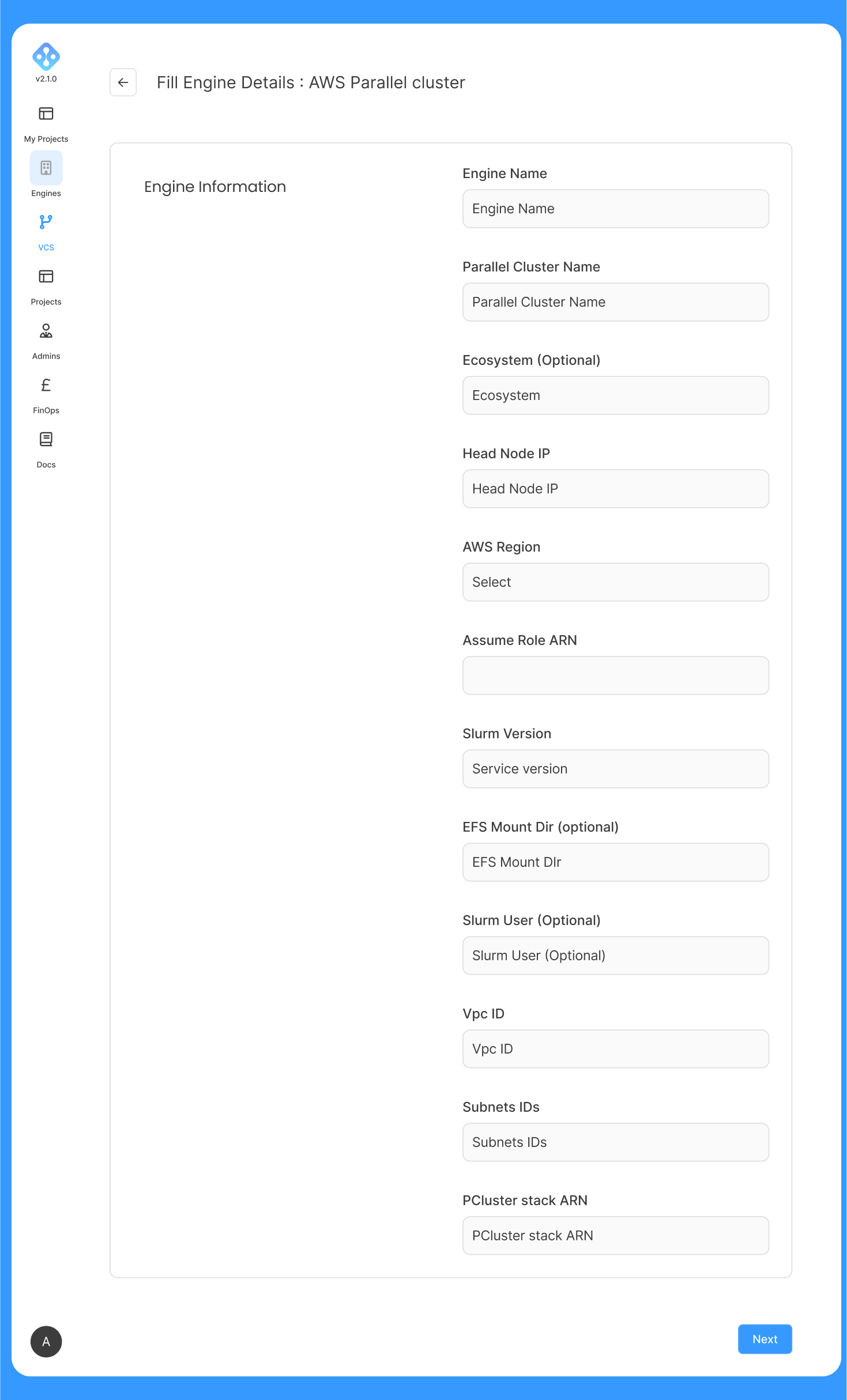

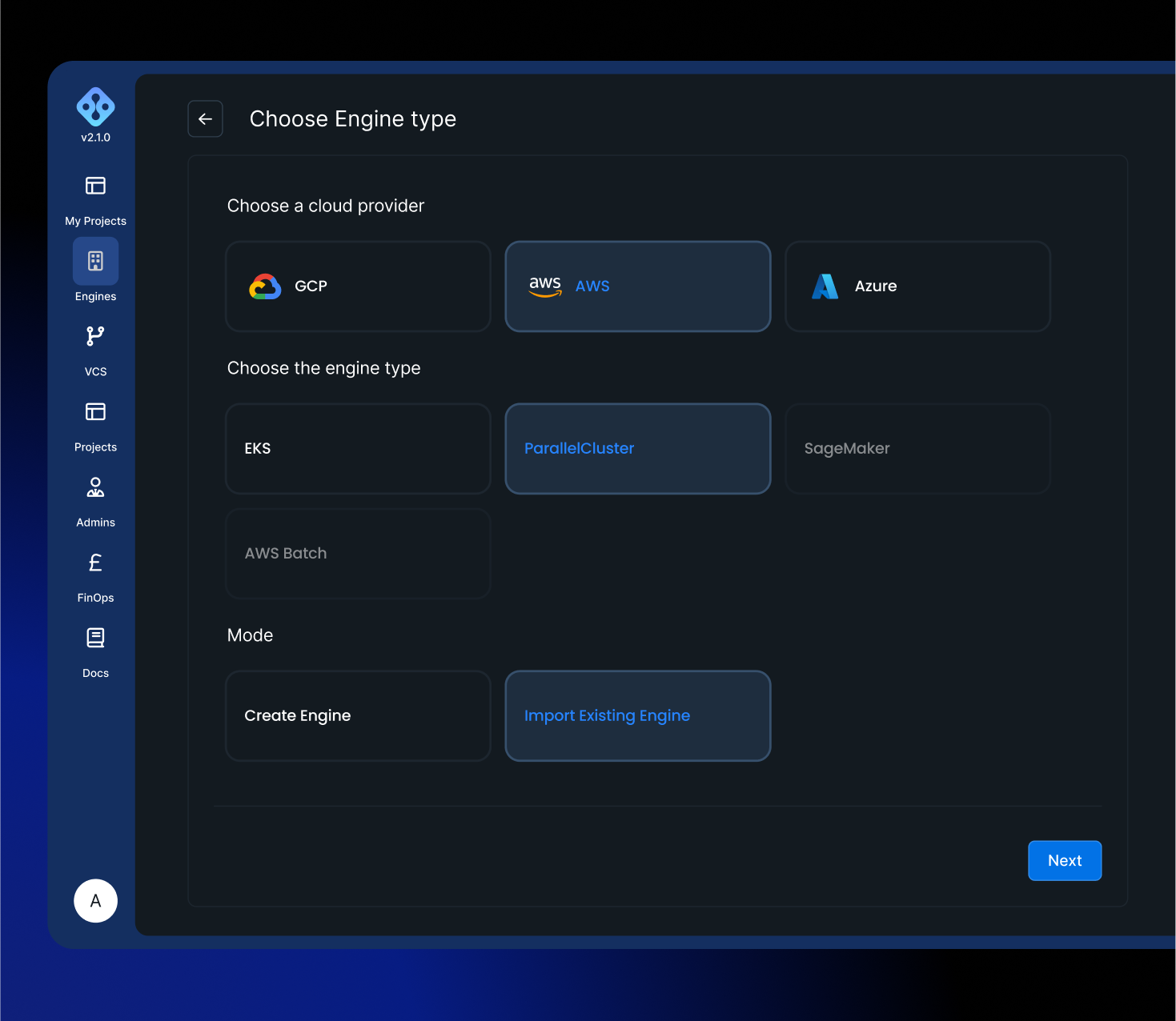

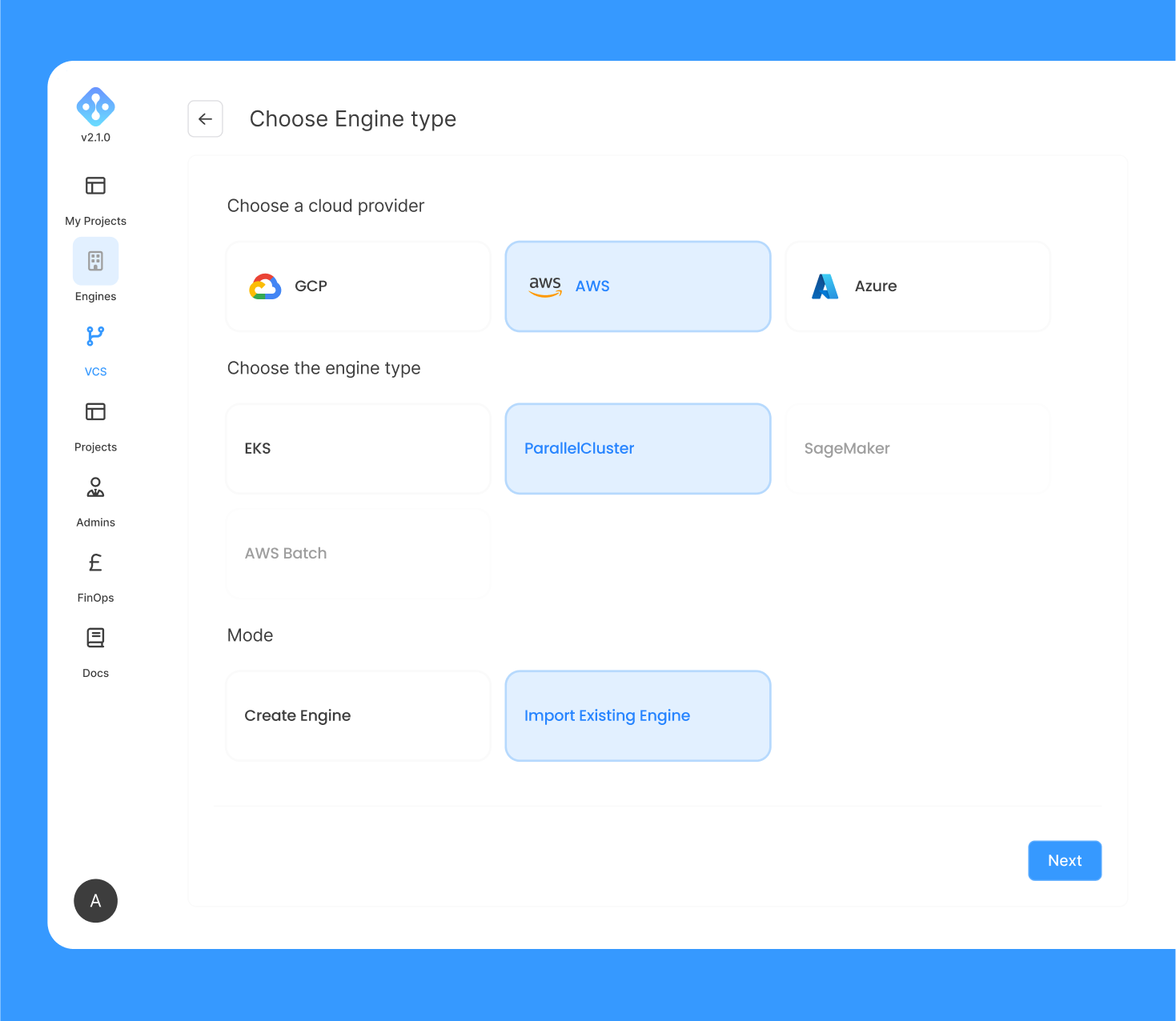

If the administrator would like to import an existing AWS ParallelCluster cluster created beforehand, then ParallelCluster Engine type is selected and finally "Import Existing Engine":

And provide the below information:

Note AIchor does not require an account with root privileges to perform engine creation or to execute jobs.

MS Azure

If the cloud provider selected is Azure, the administrator can create a AKS engine through AIchor.

Note All the regions available on Azure are supported by AIchor.

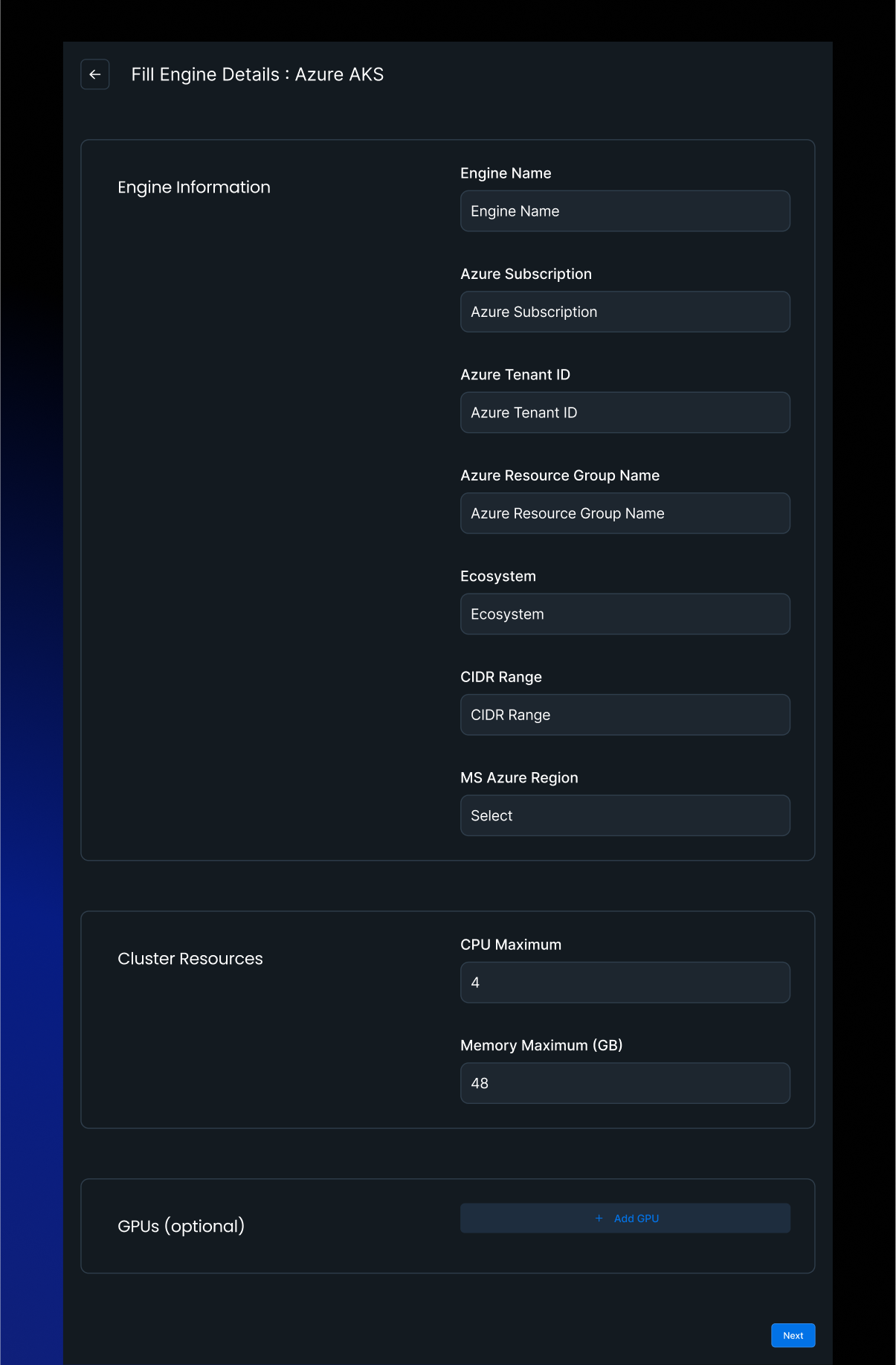

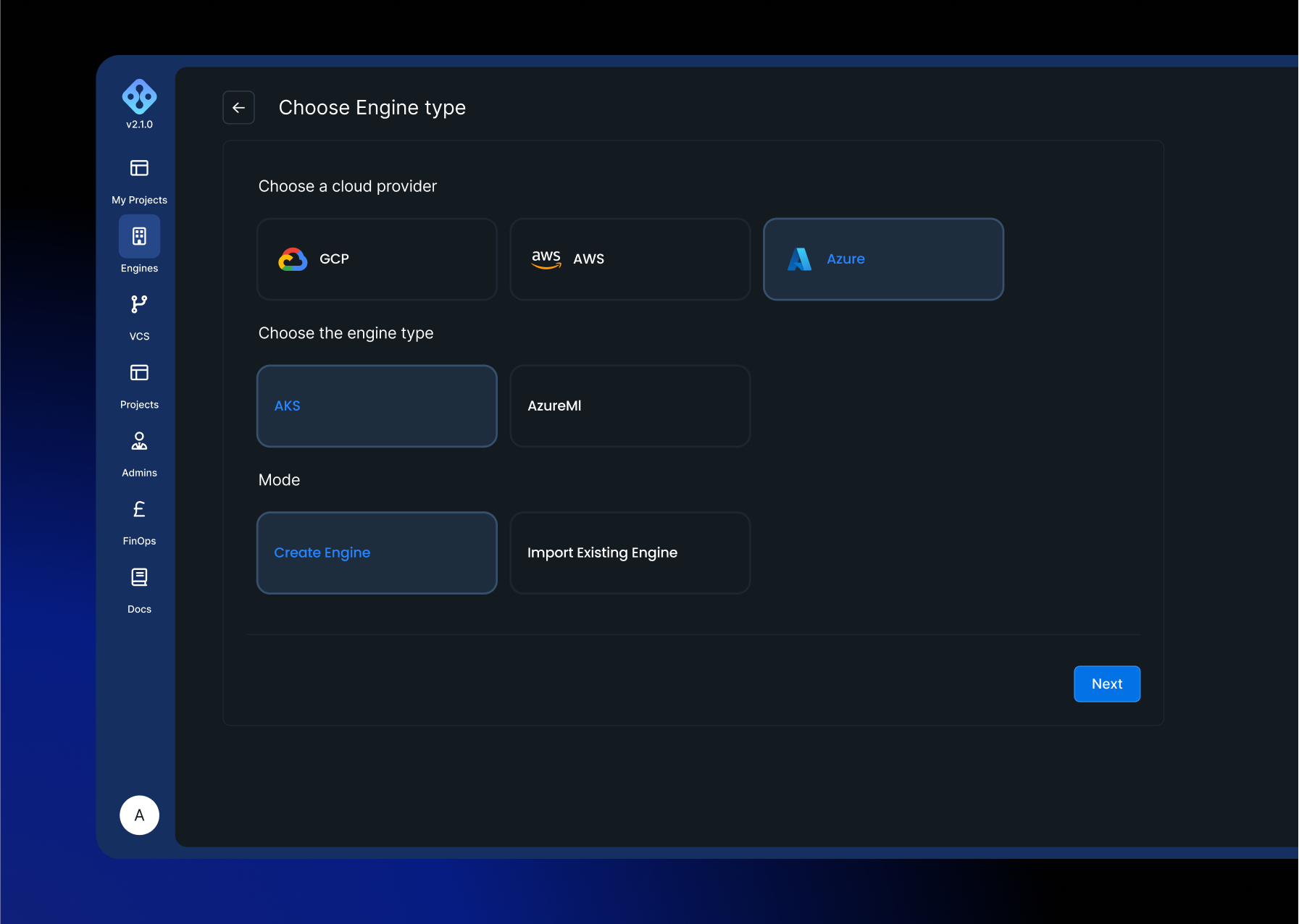

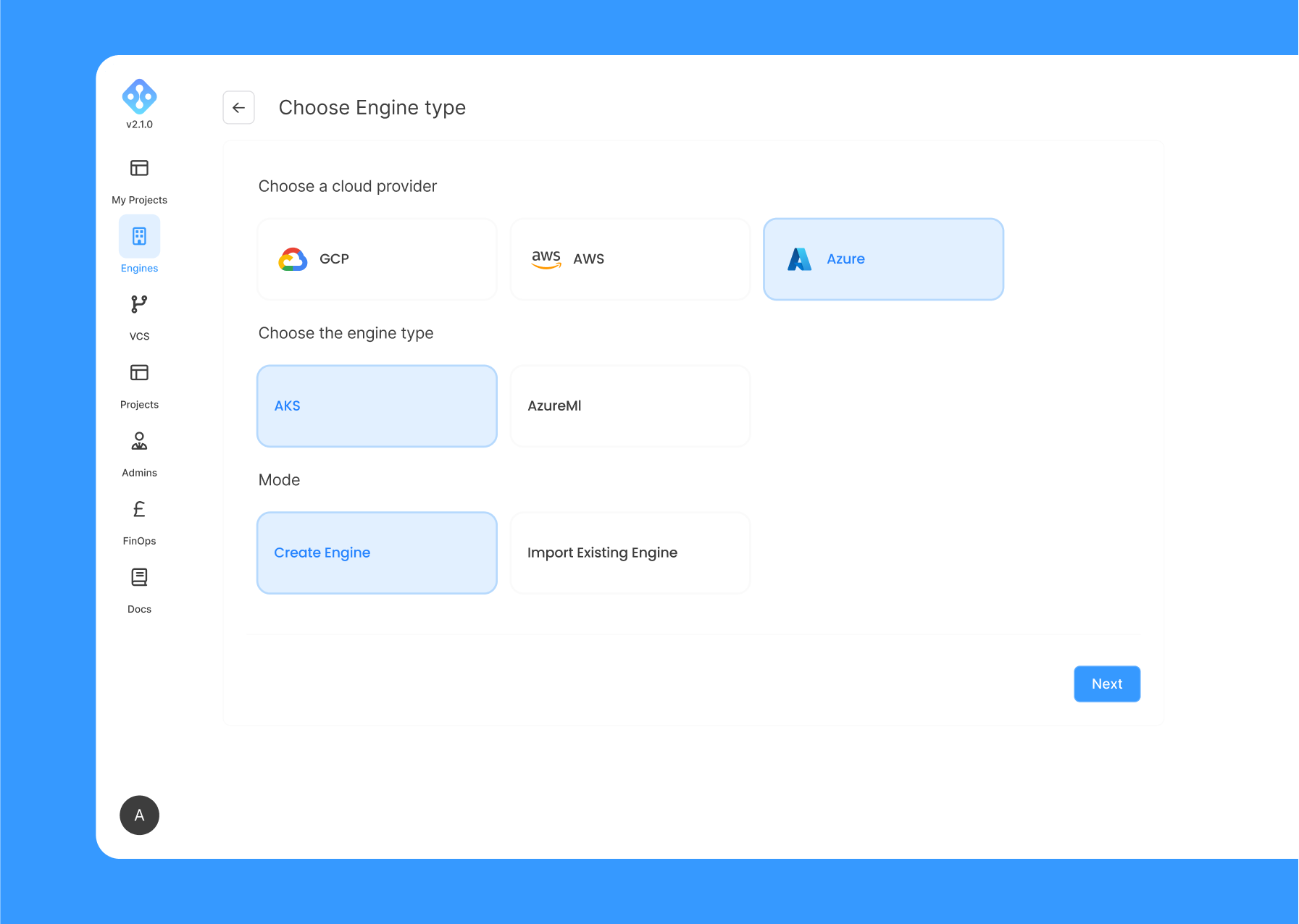

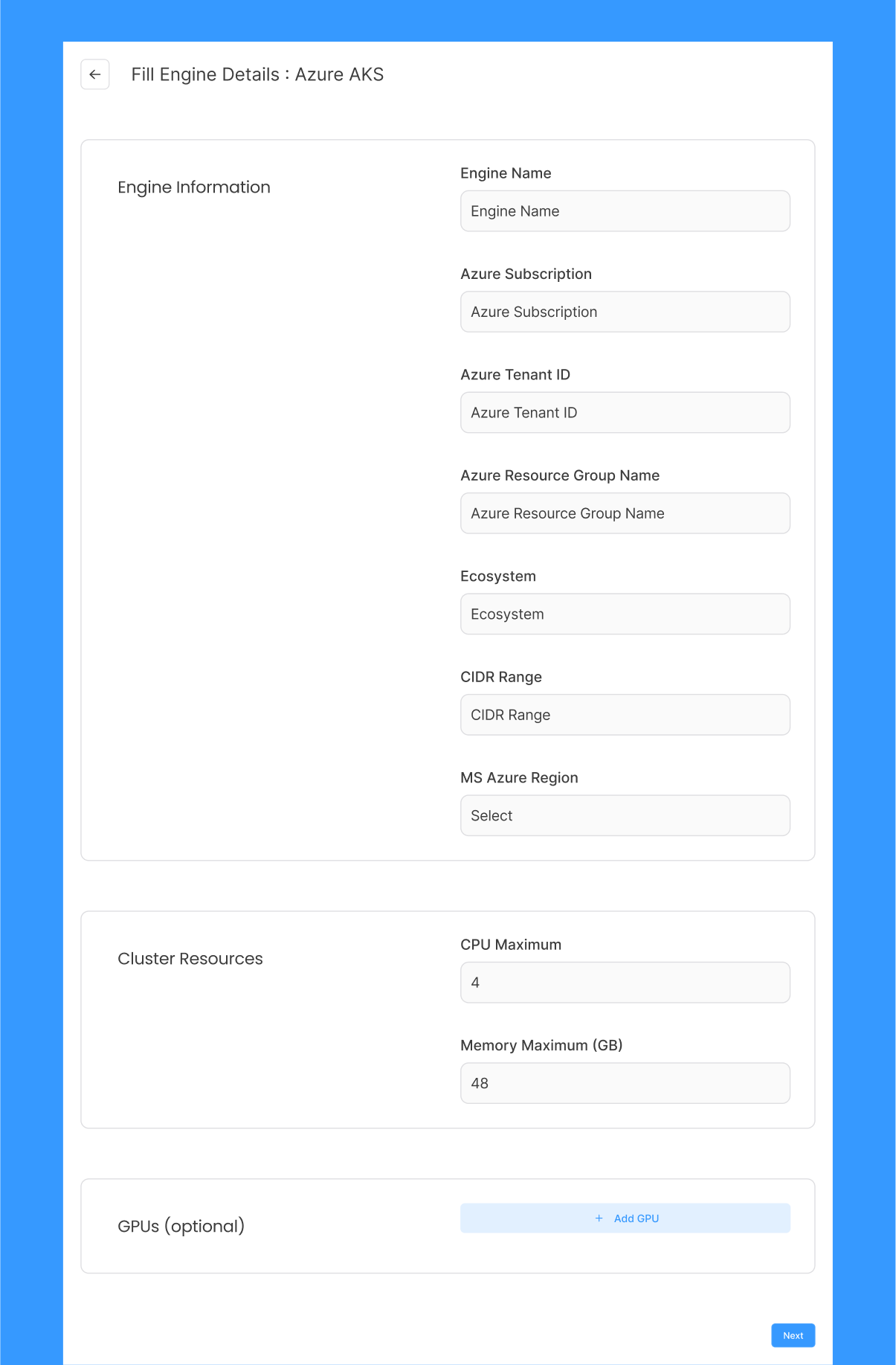

If the administrator would like AIchor to create an AKS cluster, then he needs to select "Create engine":

And provide the below information:

The deployment process lasts up to 15 minutes, once the process is finished, the engine should be displayed as ready on the engine management page.

Forms Fields

Field name	Description	Example value
Engine name	Open text for the administrator
Environment	Tag to be passed to IaaC - Required for specific organisations upon InstaDeep recommendation - Can be ignored
Region	Drop down list (Region for the cloud provider)	London
Project ID	Project ID (GCP)
Service account	Service account created by the GCP administrator to access cloud provider account
CIDR Range	Value will be passed for VPC creation
GKE/EKS Cluster name	GKE Cluster name on GCP (EKS on AWS)
API Hostname	kube-api endpoint - found in the ~/.kube/config	e2b53b98-975d-4be7-9f5b-8dfd6b765d32
Storage class	Used for Import k8s cluster
Service token	To be deprecated - No static token for Cloud providers
Certificates: Server name	TBC - can be removed
Certificate file	TBC - can be removed
Certificate key	TBC - can be removed
CA File	Certificate on the ~/.kube/config
Assume Role ARN	Role ARN created on provider side (AWS) with specific permissions (*)	arn:aws:iam::account-id:role/role-name
Base host	Specific for organisations upon InstaDeep recommendation - Can be ignored
Parallel Cluster Name	Name of the pCluster on AWS
Head Node IP	Head node ip address (API Hostname equivalent for ParallelCluster)
Slurm version	needed for Slurm api - used when a parallelCluster is imported	v0.0.39
EFS Mount dir	mounted directory used by parallelCluster	/mnt/shared/
Slurm user	User used for slurm tasks	slurm
Azure subscription	Target MS Azure subscription (TBC upon WIM tests)
Azure Service Principal	Equivalent of service account in GCP (TBC upon WIM tests)
Azure Resource Group Name	Equivalent of Projects on GCP (TBC upon WIM tests)
Load balancer DNS	NLB Used for AWS EKS import

(*) Permissions need to be listed.
